Restrictions
Restriction options
The following restriction types are supported for messages:
- Applications
- Network
- Directory service - Objects
- Directory service - Attributes
- Registry

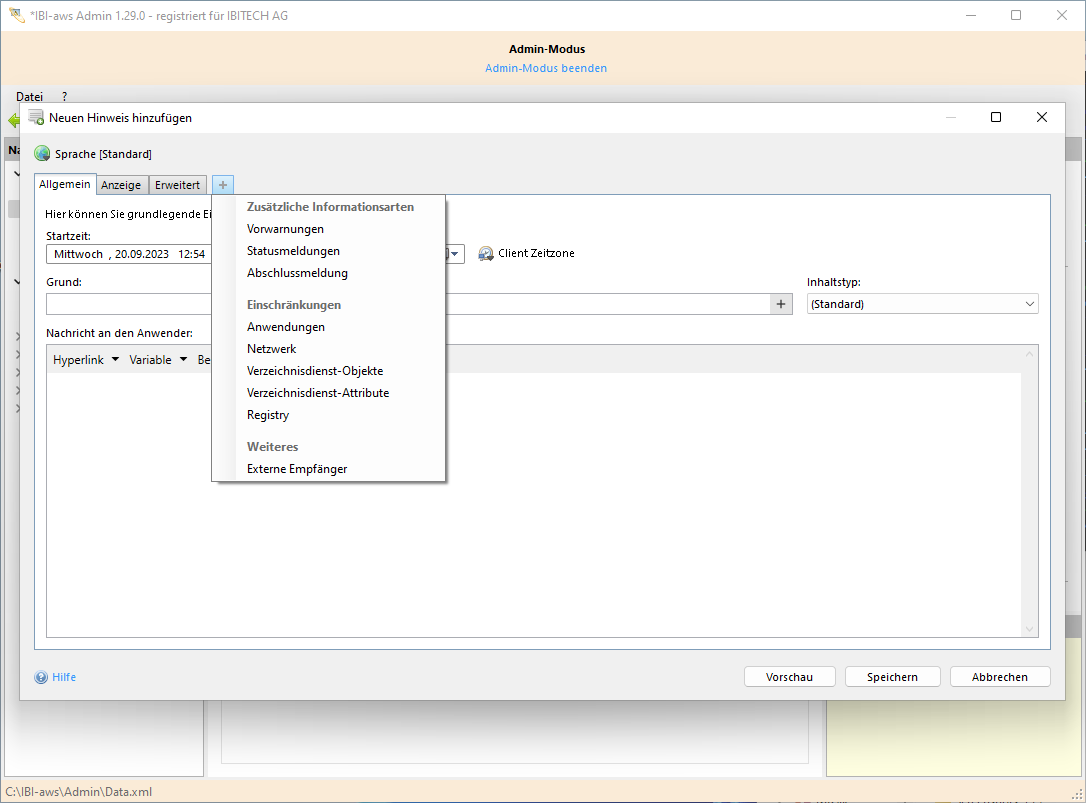

Every restriction type has a tab within the message dialog. These tabs are collapsed by default and can be made visible by clicking on the + button.
Relationship between restriction types
Restrictions will be processed according to the following rule: A message will be displayed only if at least one match is found for each restriction type. That means, restrictions of the same type have an OR-relation. Restrictions of different types have an AND-releation.
Example
Message
| Applications | Network | Directory service objects | Directory service attributes | Registry |
|---|---|---|---|---|
| notepad.exe | [User] Admin | |||
| calc.exe | [Group] Marketing |
Explanation
The defined message should only be displayed if notepad.exe and/or calc.exe are executed AND the user is User-Admin and/or the logged in user is member of the Marketing group.
Client I
| Applications | notepad.exe | explorer.exe |
|---|---|---|
Network | 192.168.1.10 | |
| Directory service objects | [User] User-1 | [Group] Developer |
| Directory service attributes | ||
| Registry |
Result
Message will NOT be displayed.
Explanation
Client I executes notepad.exe. However there is no matching directory service object. Therefore the message will not be display.
Client II
| Applications | calc.exe | iexplore.exe |
|---|---|---|
Network | 192.168.1.12 | 192.168.10.12 |
| Directory service objects | [User] Benutzer-0 | [Group] Marketing |
| Directory service attributes | Attribute-1 | |
| Registry |
Result
Message will be displayed.
Explanation
Client II executes calc.exe and the logged in user is member of the Marketing group.
