Installation
Overview

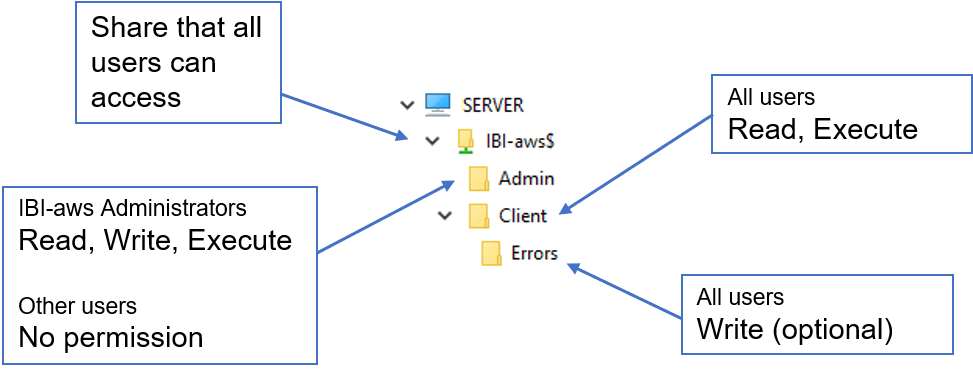

The following illustration provides an overview of the recommended folder structure and the recommended permissions for the IBI-aws folders on a central shared folder which all IBI-aws users can access.
Unpack
IBI-aws is distributed as a Zip-Archive which contains a "Ready to use" folder structure. The contents must be unpacked in a user-defined location (<Installation Location>). The best place is a shared folder on a central server to which all the clients in your network have access.
The UNC-path of the <Installation Location> could look like this, for example:\\SERVER\IBIaws$\
Warning
Please observe the information about Windows security
Permissions
The following permissions should be set in the subfolders of the <Installation Location>:
| Subfolder | Permissions |
|---|---|
Admin | Read- and Write-Permissions for all users who may create IBI-aws messages. |
Client | Read- and Execution-Permission for all users who should receive IBI-aws messages. |
Client\Errors | If problems occur that should be logged by the IBI-aws Client, all users that receive the IBI-aws messages should get Write-Permission in this subfolder. |
Installation Client Computer
The Client computer does not need an installation in the traditional sense. All you have to do is to make sure the IBI.aws.Client.exe is running.
The IBI-aws Client does not need a .NET Framework or a Java Virtual Machine
Standard installation
IBI.aws.Client.exe is located in the following folder:<Installation Location>\Client\
The IBI-aws Client can be started via a Login Script, a Group Policy or an Autostart Group.
In addition, a remark file, a skin file or a shortcut can be provided. For certain purposes it is possible to adapt the behaviour of the IBI-aws Client by adding start parameters.
Local installation
If required, the IBI-aws Client can be distributed locally to any computer that is supposed to display IBI-aws messages, e.g. via software distribution. In this case, the remark file must still be accessible via a central location.
When starting a local IBI-aws Client, the start parameters Remarks and ErrorLogPath should be specified.
Installation Admin Computer
The messages that should be shown to the clients and all other functions of IBI-aws can be managed and configured with the IBI-aws Admin. The appropriated .NET Framework (more information can be found in the System requirements) must be installed on the computer so that the IBI-aws Admin can be started.
All IBI-aws Admin contents (messages, applications, settings, etc.) are stored in the Data.xml file.
All IBI-aws Admin users must work with the same Data.xml.
Standard installation
To run the IBI-aws Admin use the IBI.aws.Admin.exe. It is located in the following folder:<Installation Location>\Admin\
The Data.xml is located in the same directory as the IBI.aws.Admin.exe.
Local installation
If required, the IBI-aws Admin can be distributed locally to any computer that is supposed to manage IBI-aws messages, e.g. via software distribution. In this case, the Data.xml must still be accessible via a central location. For this, the directory of the central Data.xml can be specified in the IBI.aws.Admin.exe.config (Key: Data_XmlFileLocation).
